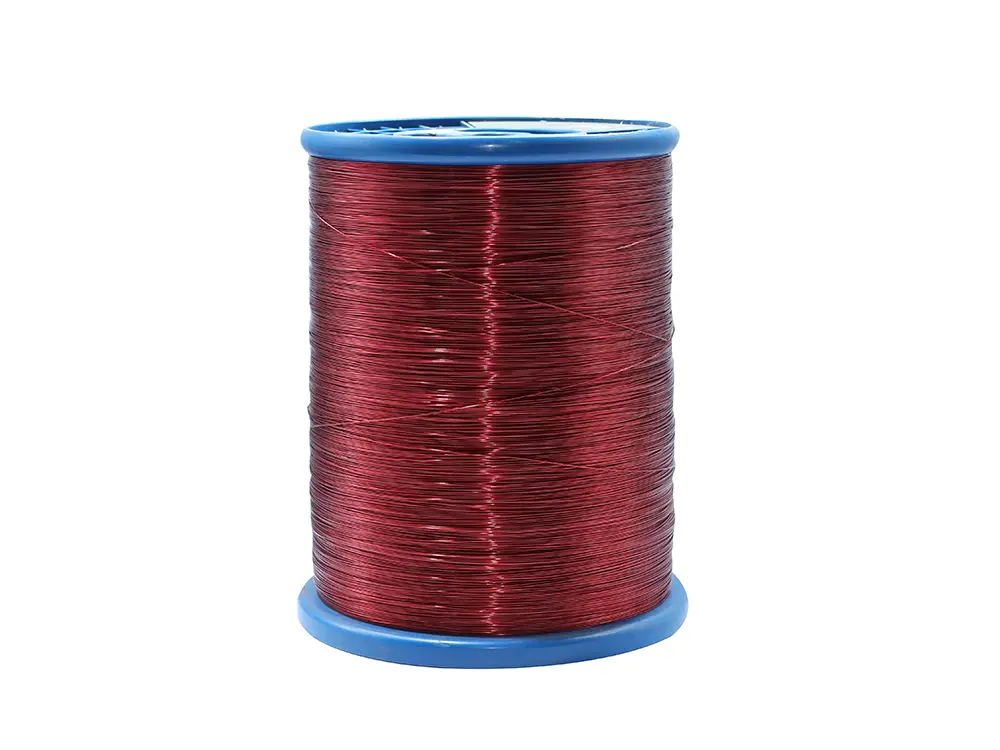

Copper Clad Aluminum Enameled Wire (1).JPG

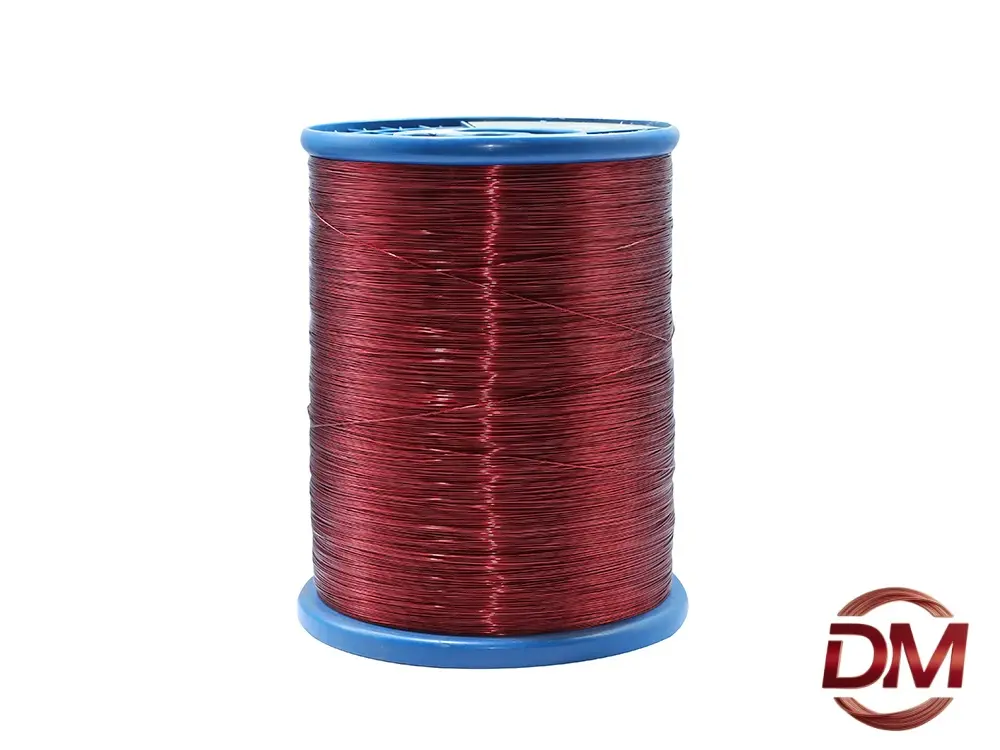

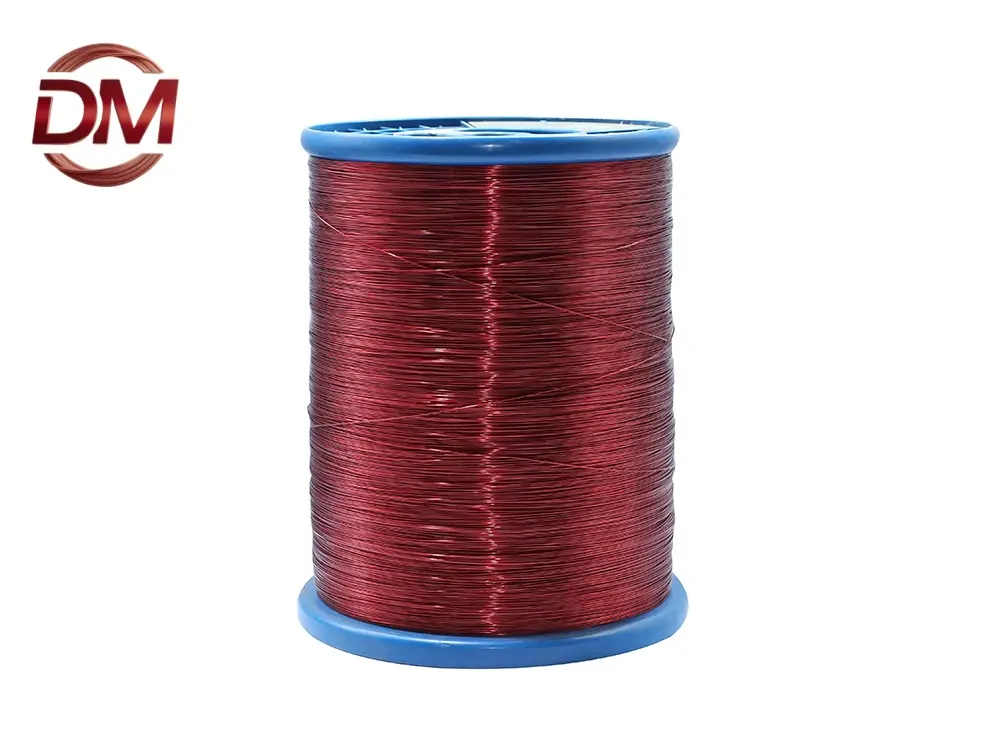

130 Class Enameled Aluminum Wire

The 133-class enameled aluminum wire is composed of a high-purity aluminum conductor and a 130-class polyester insulating enamel. The two are combined through precise processes including wire drawing, annealing, painting and baking, and cooling and wire paying-off.

Its core advantage is meeting the conductivity and insulation requirements under working conditions of 130°C and below at a low cost, while possessing basic durability, resistance to mild solvents (such as transformer oil), and damp-heat resistance.

Product Types

1.QZL/130, PEWNA/130

2.Temperature Class(℃): B

3.Manufacturing Scope: Ф0.18-6.50mm, AWG 1-34, SWG 6~SWG 38

4.Standard: IEC, NEMA, JIS

5.Spool Type: PT15 - PT270, PC500

6.Package of Enameled Aluminum Wire: Pallet Packing

7.Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

8.Quality Control: company internal standard is 25% higher than IEC standard

Product parameters

Manufacturing Scope	0.14mm-7.50mm, AWG 1-34, SWG 6~SWG 38
Standard	IEC,NEMA,JIS
Spool Type	PT15-PT270,PC500
Package of Enameled Aluminum Wire	Pallet Packing
Certification	UL, SGS, ISO9001,ISO14001, accept third party inspection as well
Quality Control	Company internal standard is 25%higher than IEC standard

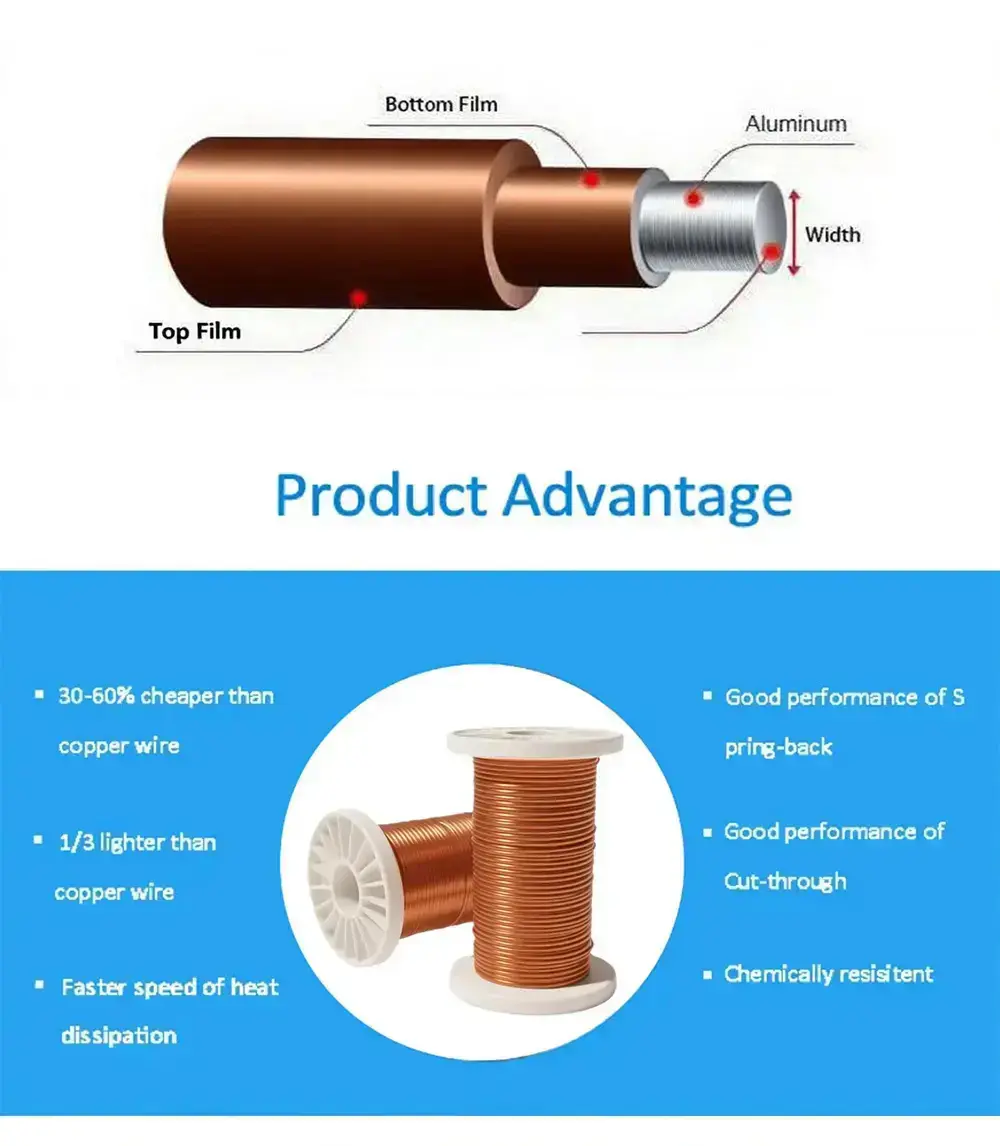

Advantages of Enameled Aluminum Wire

1. Aluminum wire is 30-60% cheaper than copper wire.

2. The weight of aluminum wire is only 1/3 of copper wire.

3. Aluminum has a fast speed of heat dissipation.

4. Aluminum wire is better than copper wire in the performance of Spring-back and Cut-through.

5. It has good direct weldability, which can effectively improve the work efficiency.

6. Good skin adhesion, heat resistance and chemical resistance.

7. Good insulation and corona resistance.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT15	6.5KG	12-13 tons	22.5-23 tons
	PT25	10.8KG	14-15 tons	22.5-23 tons
	PT60	23.5KG	12-13 tons	22.5-23 tons
	PT90	30-35KG	12-13 tons	22.5-23 tons
	PT200	60-65KG	13-14 tons	22.5-23 tons
	PT270	120-130KG	13-14 tons	22.5-23 tons
	PC500	60-65KG	17-18 tons	22.5-23 tons
