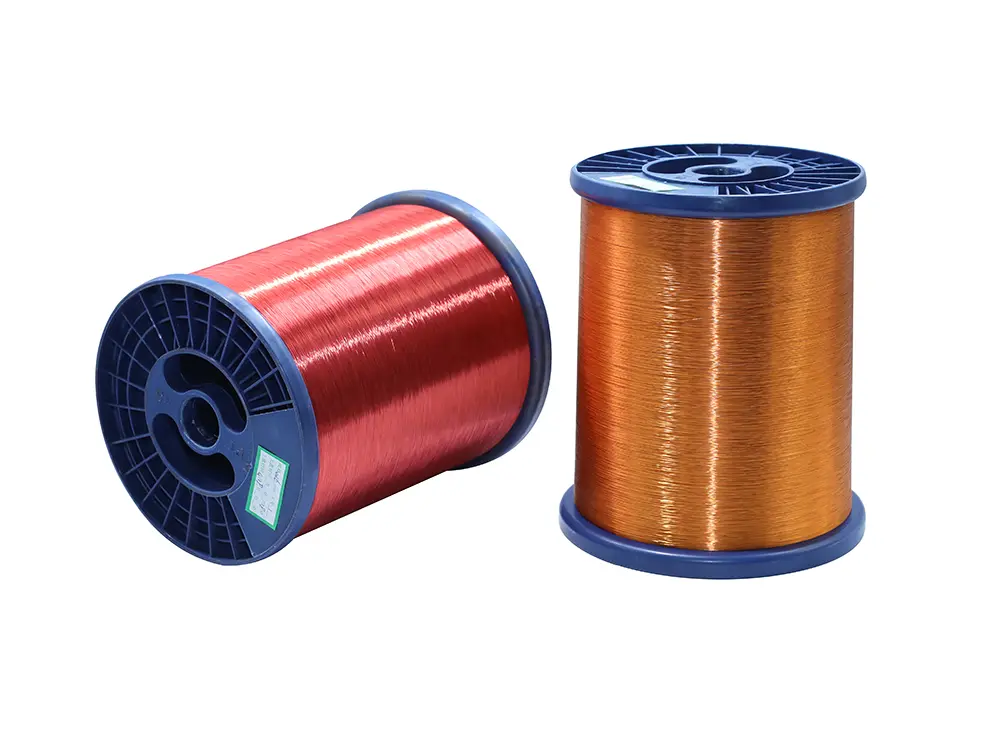

Copper Clad Aluminum Enameled Wire (7).JPG

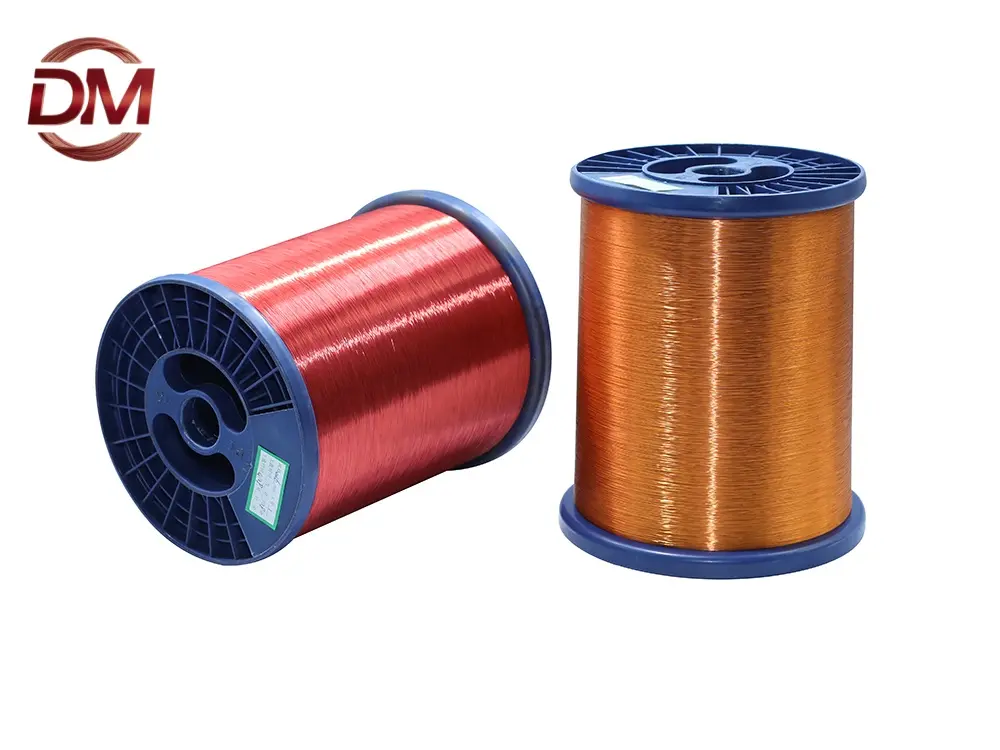

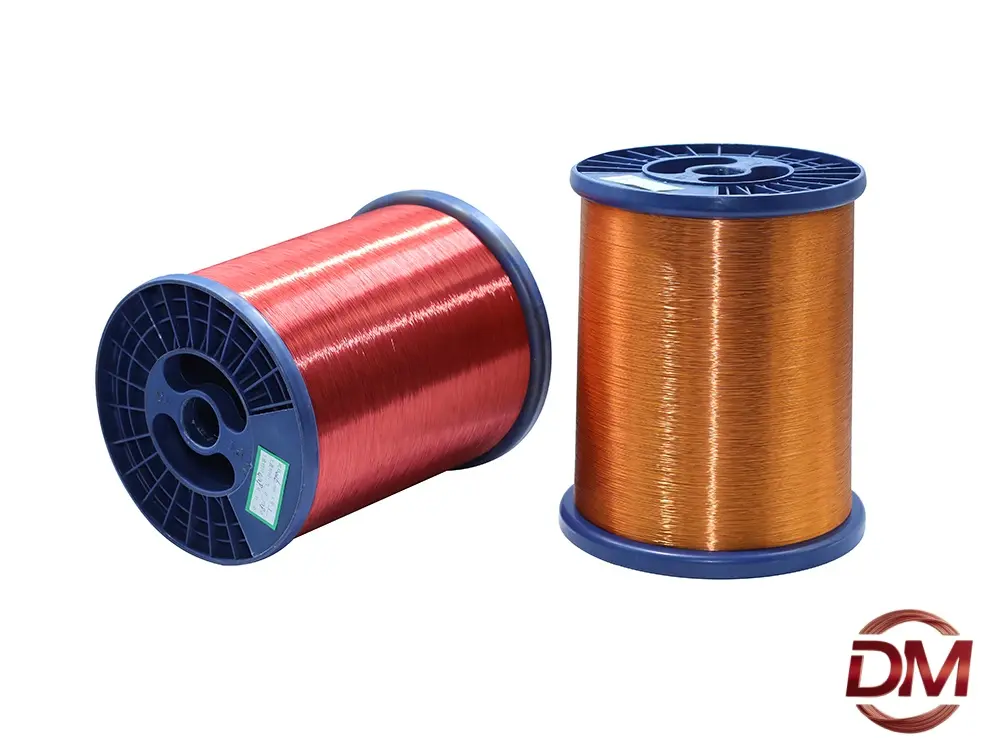

155 Class UEW Enameled Aluminum Wire

Enameled aluminum round wire is a major type of magnet wire winding.

The mainstream insulating enamel material for 155°C enameled aluminum wire is polyester enamel.

The thermal shock temperature of 155°C enameled aluminum wire is generally 155°C-175°C, it has good performance of elasticity, durability, electrical properties and solvent resistance.

It is suitable for general household motors, electrical instruments, power transformers, etc.

Product Types

1.QZL/155, PEWNA/155

2.Temperature Class(℃): F

3.Manufacturing Scope: Ф0.18-6.50mm, AWG 1-34, SWG 6~SWG 38

4.Standard: IEC, NEMA, JIS

5.Spool Type: PT15 - PT270, PC500

6.Package of Enameled Aluminum Wire: Pallet Packing

7.Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

8.Quality Control: company internal standard is 25% higher than IEC standard

Product Parameters

Manufacturing Scope	0.14mm-7.50mm,AWG 1-34,SWG 6~SWG 38
Standard	IEC,NEMA,JIS
Spool Type	PT15-PT270,PC500
Package of Enameled Aluminum Wire	Pallet Packing
Certification	UL, SGS, ISO9001, ISO14001, accept third party inspection as well
Quality Control	Company internal standard is 25%higher than IEC standard

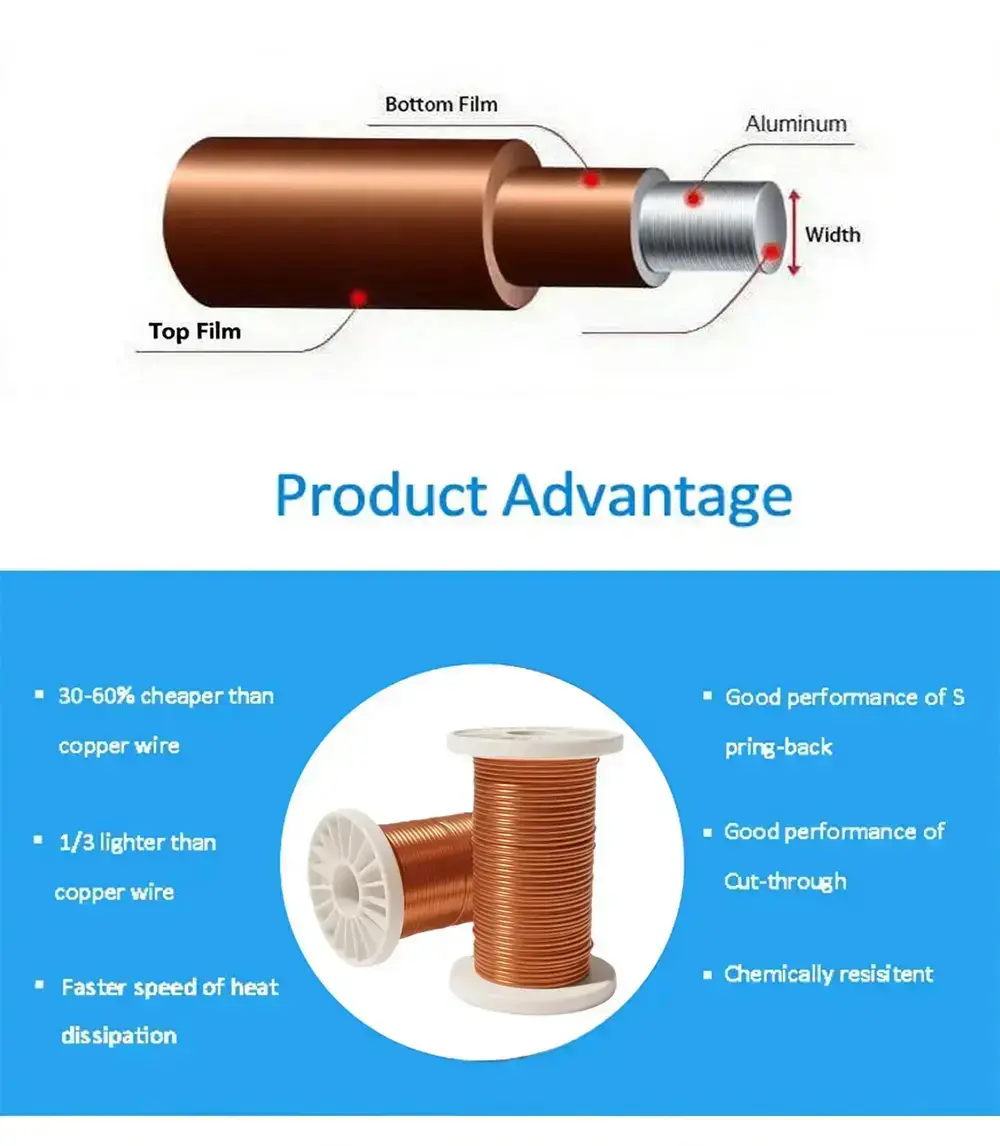

Advantages of Enameled Aluminum Wire

1. The cost of aluminum wire saves the cost of production, which is 30-60% lower than copper wire.

2. The weight of aluminum wire saves the transportation cost, which is only 1/3 of copper wire.

3. Aluminum is good at heat dissipation at a fast speed.

4. For the performance of Spring-back and Cut-through, aluminum wire is better than copper wire.

5. Enameled aluminum wire has good performance of skin adhesion, heat resistance and chemical resistance.

6. Enameled aluminum wire has good performance of insulation and corona resistance.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT15	6.5KG	12-13 tons	22.5-23 tons
	PT25	10.8KG	14-15 tons	22.5-23 tons
	PT60	23.5KG	12-13 tons	22.5-23 tons
	PT90	30-35KG	12-13 tons	22.5-23 tons
	PT200	60-65KG	13-14 tons	22.5-23 tons
	PT270	120-130KG	13-14 tons	22.5-23 tons
	PC500	60-65KG	17-18 tons	22.5-23 tons
