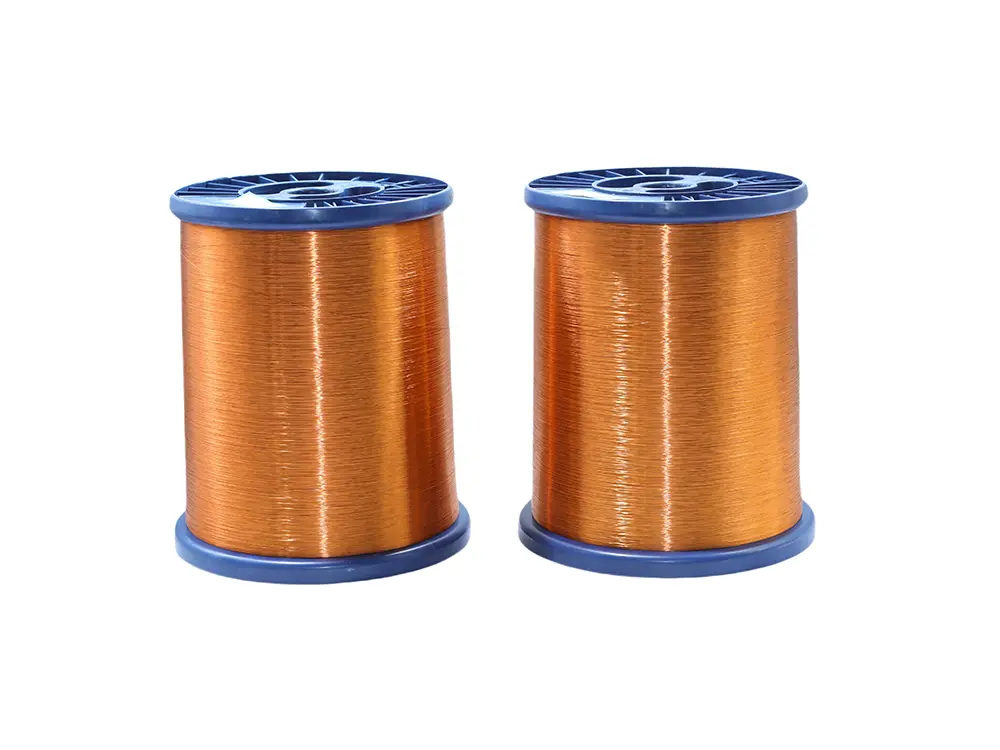

Copper Clad Aluminum Enameled Wire (5).JPG

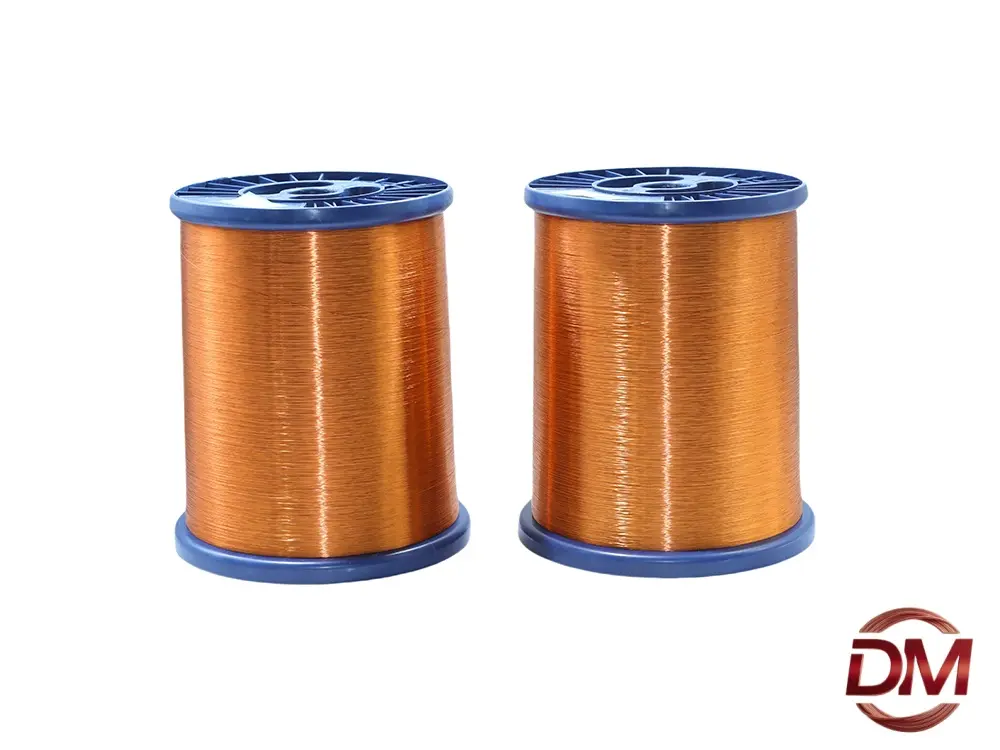

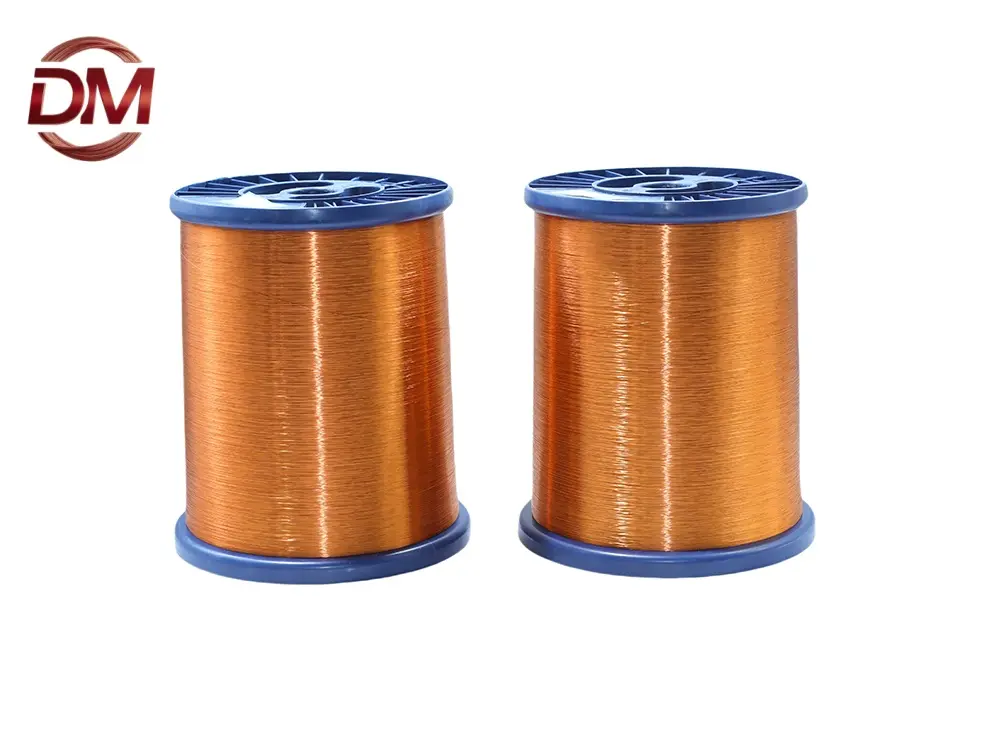

155 Class UEW Enameled Copper Wire

Enamelled wire is the main raw material for motors, electrical appliances and household appliances and other products, especially in recent years the power industry has achieved sustained rapid growth, the rapid development of household appliances, to the application of enameled wire to bring a broader field. Enamelled copper wire is one of the main types of winding wire. It consists of a conductor and an insulating layer. The bare wire is softened by annealing, painted several times, and then baked. With mechanical property, chemical property, electrical property, thermal property four major properties. The product can work continuously under 155°C. It has excellent and electrical properties and is suitable for winding in general motors of class F and coils of electrical instrument.

Product Types

QZ/155L, PEW/155

Temperature Class(℃): F

Manufacturing Scope: 0.10mm-6.00mm, AWG 1-38, SWG 6~SWG 42

Standard: NEMA, JIS, GB/T 6109.7-2008, IEC60317-34:1997

Spool Type: PT4 - PT60, DIN250

Package of Enameled Copper Wire: Pallet Packing, Wooden case Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Product Parameters

Comparison of Different Product Type
Product Type	Enameled Aluminum Wire	Enameled Copper Wire	Enameled CCA10% Copper Clad Aluminum Wire	Enameled CCA15% Copper Clad Aluminum Wire	Enameled CCA20% Copper Clad Aluminum Wire
Diameter Range	0.10mm-6.0mm	0.10mm-2.50mm	0.05mm-8.00mm	0.05mm-8.00mm	0.05mm-8.00mm
DC Resistance (20°C ）	0.083Ω/m	0.0172Ω/m	0.0249Ω/m	0.0249Ω/m	0.0249Ω/m
Conductor Density(g/cm³）	2.7	8.96	3.32	3.63	3.94
Tensile Strength Nom(N/mm²）	120	280	135	155	165
Elongation Nom (%)	22	26	16	17	18
Conductivity (MS/m)	28-32	56-58.5	35-40	35-42.5	35-45.5
Breakdown Voltage(>2000V)	Non-breakdown	Non-breakdown	Non-breakdown	Non-breakdown	Non-breakdown
Property	Good electrical conductivity, lightweight,cost-effective, corrosion resistance,excellent ductility	Excellent thermal conductivity, high mechanical strength, superior compatibility,Good weldability	Cost advantage over solid copper, current primarily conducted through the copper layer (skin depth <10 μm @ 1 MHz), and corrosion resistance equivalent to pure copper	Cost advantage over solid copper, current primarily conducted through the copper layer (skin depth <10 μm @ 1 MHz), and corrosion resistance equivalent to pure copper	Cost advantage over solid copper, current primarily conducted through the copper layer (skin depth <10 μm @ 1 MHz), and corrosion resistance equivalent to pure copper
Application	Transformer,Electric Motor,Generator,Power Transmission	Transformer,Electric Motor,Generator,Power Transmission,Specialty wires and cables,Large-scale electric motors	Transformer,Motor,Communication cables,audio equipment,electronic circuits	Transformer,Motor,Communication cables,audio equipment,electronic circuits	Transformer,Motor,Communication cables,audio equipment,electronic circuits

Advantages of Enameled Copper Wire

1. High resistant to heat shock.

2. Resist high temperature.

3. Perform well in cut-through.

4. Suitable for high-speed automated routing.

5. Good capacity in direct welding.

6. Good capacity in resistance to high frequency, wearing, refrigerants and electronics corona.

7. Environment-friendly.

Application of 155 Class UEW Enameled Copper Wire

enamelled wire for motor and transformer

The motor is a large user of enamelled wire, the rise and fall of the motor industry is very important to the enamelled wire industry. Transformer industry is also a large user of enamelled wire.

enamelled wire for household appliances

The consumption of enamelled wire in household appliance industry has exceeded that of industrial motor and transformer enamelled wire, becoming the largest user of enamelled wire.

enamelled wire for automobiles

The rapid development of automobile industry after reform and opening has become one of the pillar industries. During the "11th Five-Year Plan" period, the country will carry out strategic adjustment to the automobile industry, fundamentally changing the situation of the automobile industry scattered and bad, automobile production will grow rapidly, according to the analysis of foreign experts, in the next 20 years, the world's three major automobile markets are the United States, Europe and China.

New enamelled wire

The new enamelled wire includes corona resistant enamelled wire, polyurethane enamelled wire, polyester imine enamelled wire, composite coating enamelled wire, fine enamelled wire, etc. The micro enamelled wire and ultra fine enamelled wire are mainly used in the output transformer of TV and display, washing machine timer, buzzer, radio recorder, VCD, computer magnetic head, micro relay, electronic watch and other components.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT4	6.5KG	22.5-23 tons	22.5-23 tons
	PT10	15KG	22.5-23 tons	22.5-23 tons
	PT15	19KG	22.5-23 tons	22.5-23 tons
	PT25	35KG	22.5-23 tons	22.5-23 tons
	PT60	65KG	22.5-23 tons	22.5-23 tons
	PC400	80-85KG	22.5-23 tons	22.5-23 tons
