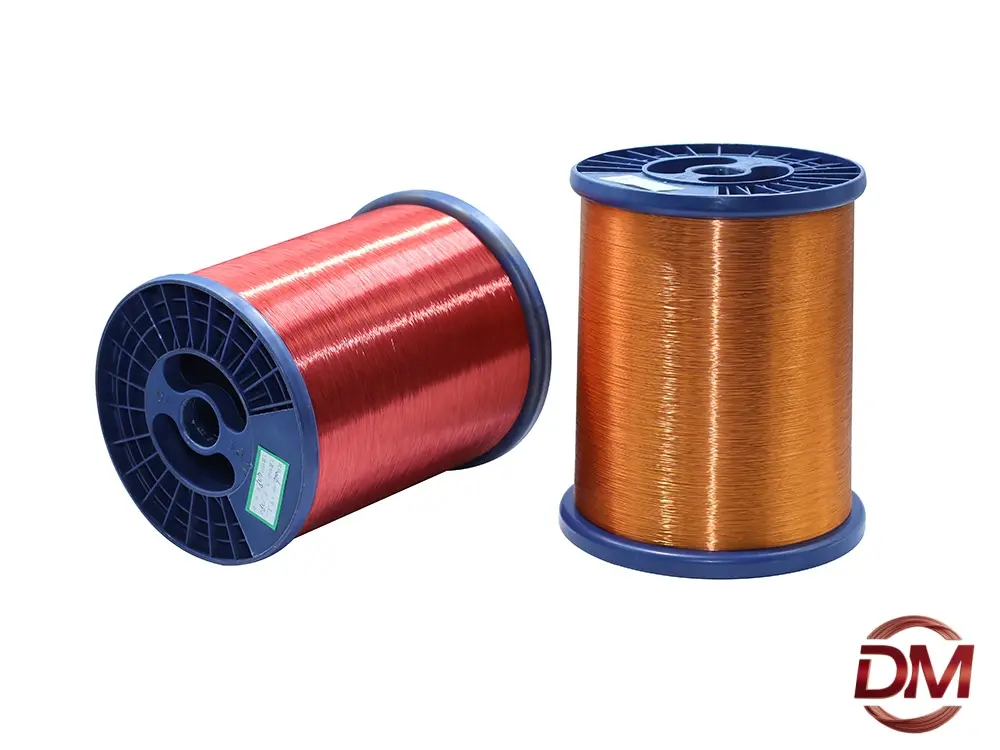

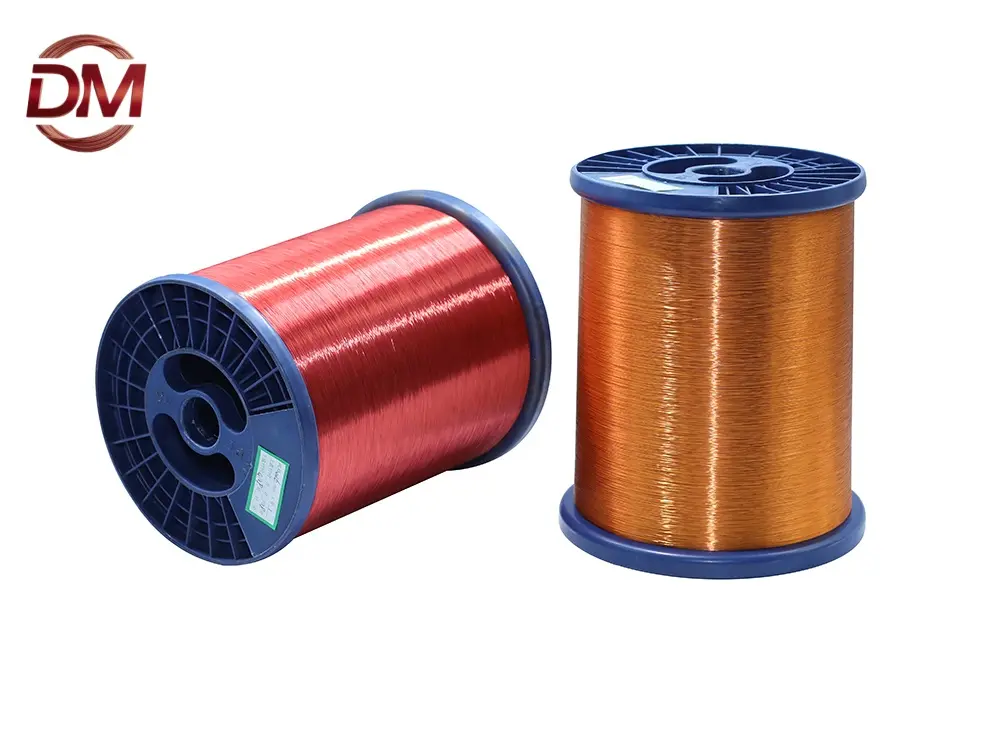

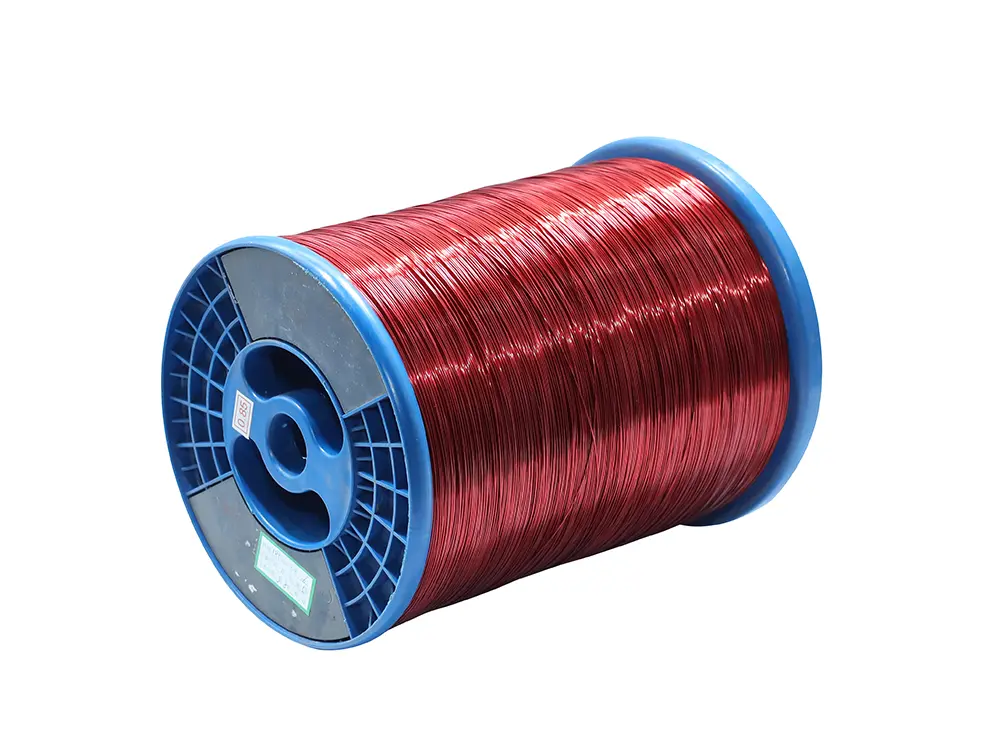

15A Manufacturer Enameled copper clad aluminum wire CCA Wire for motor transformer

Enamelled copper clad aluminum wire is a new electromagnetic wire taking copper clad aluminum as inner conductor material, with characteristics between copper and aluminum. It combines excellent conductivity of copper and light weight of aluminum.

Electrical performance

Performance Indicators	Copper clad aluminum enameled wire	Enameled aluminum wire	Enameled copper wire
Electrical conductivity	Between copper and aluminum (about 60%~70% of pure copper)	About 61% of pure copper	High electrical conductivity (approximately 100% IACS)
DC resistance	Lower than enameled aluminum wire, higher than enameled copper wire	Maximum resistance (under the same cross-sectional area)	Minimum resistance
Current carrying capacity	Better than enameled aluminum wire, slightly lower than enameled copper wire	Minimum current carrying capacity	Maximum current carrying capacity
Skin Effect	Copper layer improves high frequency performance, better than pure aluminum wire	The current concentration surface is more obvious at high frequencies	Best performance at high frequencies

Cost and cost Performance

Type	Cost	Cost-effectiveness
Copper clad aluminum enameled wire	Lower than enameled copper wire, higher than enameled aluminum wire	Taking into account both cost and performance, suitable for medium load scenarios
Enameled aluminum wire	Lowest cost	Suitable for low-cost, light-load scenarios
Enameled copper wire	Highest cost	Best price/performance ratio for high-performance scenarios

Application Scenarios

Application Areas	Copper clad aluminum enameled wire	Enameled aluminum wire	Enameled copper wire
Power Transformer	Low-end distribution transformers	Low-end distribution transformers	High-end power transformer
Motor	Small and medium-sized motors (such as air conditioning compressors)	Small power motor (such as fan)	High power motor, servo motor
Electronic components	Inductors, chokes	Low-end coil, transformer	High frequency coils, precision components
Home Appliances	Refrigerator, washing machine winding	Internal circuits of some small appliances	Core components such as air conditioners and microwave ovens
Cable	Medium and low voltage power cables	Overhead lines, some cables	High voltage cables, precision cables

Enameled Copper Clad Alu

Comparison of Different Product Type

Product Type	Enameled CCA10% Copper Clad Aluminum Wire	Enameled CCA15% Copper Clad Aluminum Wire	Enameled CCA20% Copper Clad Aluminum Wire
Diameter Range	0.05mm-8.00mm	0.05mm-8.00mm	0.05mm-8.00mm
DC Resistance (20°C )	0.0249Ω/m	0.0249Ω/m	0.0249Ω/m
Conductor Density(g/cm³)	3.32	3.63	3.94
Tensile Strength Nom(N/mm²)	135	155	165
Elongation Nom (%)	16	17	18
Conductivity (MS/m)	35-40	35-42.5	35-45.5
Breakdown Voltage(>2000V)	Non-breakdown	Non-breakdown	Non-breakdown
Property	Cost advantage over solid copper, current primarily conducted through the copper layer (skin depth <10 μm @ 1 MHz), and corrosion resistance equivalent to pure copper	Cost advantage over solid copper, current primarily conducted through the copper layer (skin depth <10 μm @ 1 MHz), and corrosion resistance equivalent to pure copper	Cost advantage over solid copper, current primarily conducted through the copper layer (skin depth <10 μm @ 1 MHz), and corrosion resistance equivalent to pure copper
Application	Transformer,Motor,Communication cables,audio equipment,electronic circuits	Transformer,Motor,Communication cables,audio equipment,electronic circuits	Transformer,Motor,Communication cables,audio equipment,electronic circuits

Product Introduction

Comparison Dimensions	Enameled Flat Wire	Enameled Round Wire
Appearance and structure	Rectangular or flat square cross-section with wide width and small thickness	Circular cross section with uniform diameter
Electrical properties	Due to the large cross-sectional area and flat shape, the DC resistance is relatively low under the same cross-sectional area, it can carry a larger current and has a higher power transmission efficiency.	The current distribution of the circular cross section is relatively uniform, but in high current scenarios, the skin effect (current concentration on the surface of the conductor) may be more obvious and the resistance is relatively large.
Space Utilization	The flat square structure makes it more compact in the winding, with high space utilization, and is suitable for applications with strict volume requirements.	There will be some gaps when the windings are arranged in a circular structure, and the space utilization rate is relatively low.
Thermal performance	The flat shape increases the contact area with the air or heat dissipation medium, which improves the heat dissipation effect and is conducive to the long-term stable operation of the equipment.	The heat dissipation area is relatively small, and the heat dissipation performance is slightly inferior to that of flat wire
Processing and Application	The processing technology is relatively complex and is mainly used to manufacture transformers, motors and other electrical equipment that require large current, low resistance and compact space, such as the windings of power transformers, stators and rotors of large motors, etc.	The processing technology is relatively mature and widely used. It is often used in small motors, electronic transformers, inductors and other occasions where space requirements are not so stringent.

Precautions for use USAGE NOTICE

1. Please refer to the product introduction to select the appropriate product model and specification to avoid the failure to use due to the inconsistent characteristics.

2. When receiving the goods, confirm the weight and whether the outer packing box is crushed, damaged, dented or deformed; In the process of handling, it should be handled with care to avoid vibration to make the cable fall down as a whole, resulting in no thread head, stuck wire and no smooth setting out.

3. During storage, pay attention to protection, prevent from being bruised and crushed by metal and other hard objects, and prohibit mixed storage with organic solvent, strong acid or alkali. The unused products should be wrapped tightly and stored in the original package.

4. The enameled wire should be stored in a ventilated warehouse away from dust (including metal dust). Direct sunlight is prohibited to avoid high temperature and humidity. The best storage environment is: temperature ≤50 ℃ and relative humidity ≤ 70%.

5. When removing the enameled spool, hook the right index finger and middle finger to the upper end plate hole of the reel, and hold the lower end plate with the left hand. Do not touch the enameled wire directly with your hand.

6. During the winding process, the spool should be put into the pay off cover as far as possible to avoid wire damage or solvent pollution; In the process of paying off, the winding tension should be adjusted according to the safety tension table, so as to avoid wire breakage or wire elongation caused by excessive tension, and at the same time, avoid wire contact with hard objects, resulting in paint film damage and poor short circuit.

7. Pay attention to the concentration and amount of solvent (methanol and anhydrous ethanol are recommended) when bonding the solvent bonded self-adhesive line, and pay attention to the adjustment of the distance between the hot air pipe and the mold and the temperature when bonding the hot melt bonded self-adhesive line.

Product Details

TO KNOW MORE ABOUT US, PLEASE CONTACT US！

daijia@dm-cable.com
brinlynne@dm-cable.com
Xiyang Community, Qidu Town, Wujiang District, Suzhou City, Jiangsu Province.

Our experts will solve them in no time.

Type	Conductor material	Insulation layer
Copper clad aluminum enameled wire	Aluminum core inside, copper layer outside	Polyester, polyurethane and other paint layers
Enameled aluminum wire	Pure aluminum conductor	Polyester, polyurethane and other paint layers
Enameled copper wire	Pure copper conductor	Polyester, polyurethane and other paint layers

Characteristic	Copper clad aluminum enameled wire	Enameled aluminum wire	Enameled copper wire
Density	About 2.7~3.0 g/cm³ (lower than copper, close to aluminum)	2.7 g/cm³ (light)	8.9 g/cm³ (weight)
Flexibility	Better than pure aluminum wire, close to copper wire	Brittle, easy to break when bent	Good flexibility, easy to process
Antioxidant	The copper layer can protect the aluminum core and has strong anti-oxidation ability	Aluminum is easy to oxidize, so insulation protection needs to be strengthened	Copper has good oxidation resistance
Weldability	Special process required (copper layer can be welded)	High welding difficulty (aluminum easily forms oxide film)	Excellent weldability
