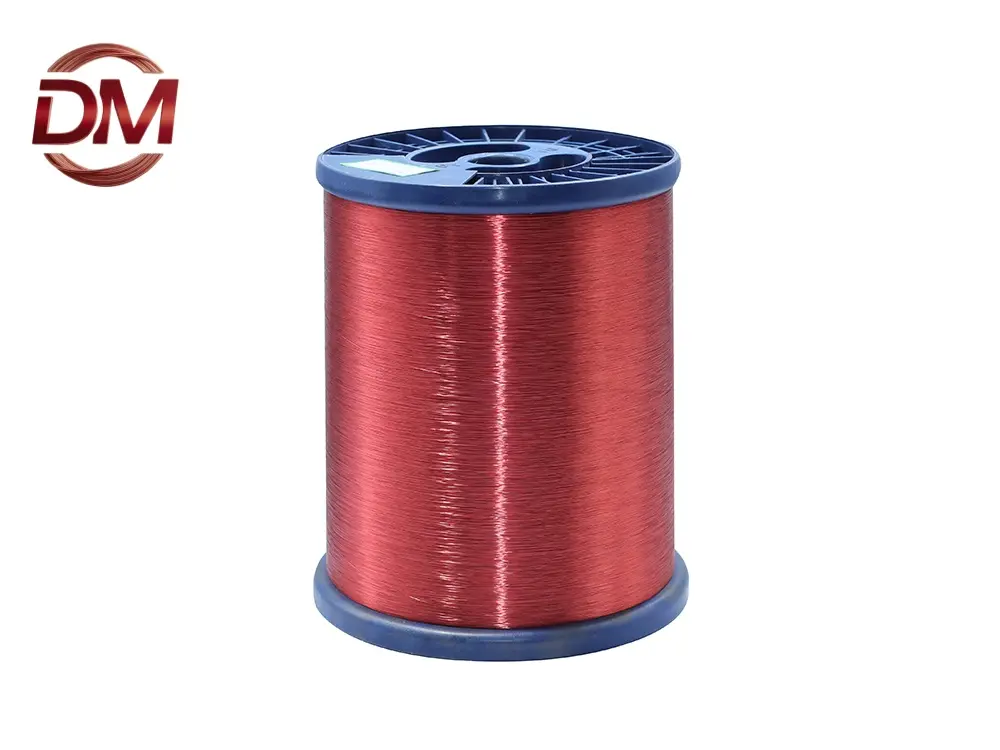

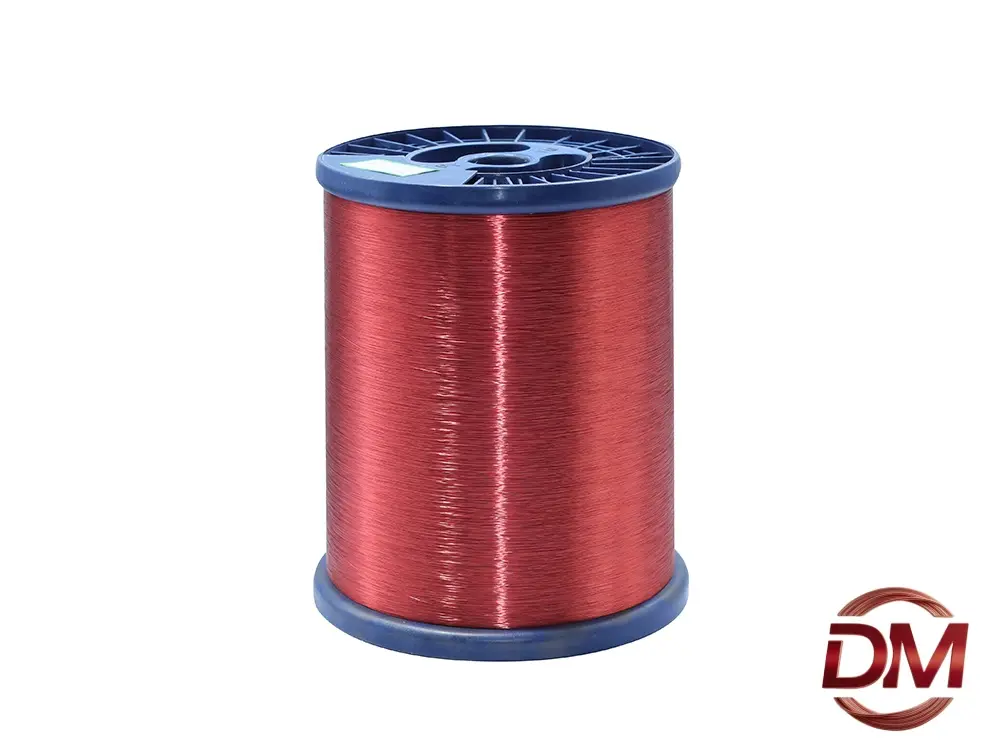

180 Class Enameled Aluminum Wire

Enameled aluminum wire composed of an aluminum conductor and an insulating layer. The aluminium rods are repeatedly drawn and annealed to soften them, and then go through multiple cycles of coating and baking, and other key processes, to eventually produce enameled aluminium wires.

The 180-class enameled wire features excellent thermal shock resistance, a high softening breakdown temperature, outstanding mechanical strength, solvent resistance, and freezing resistance.

It is widely used in household motors such as fan motors,general industrial fans, water pump motors,transformers,ballasts and reactors.

Product Types

1.QZYL/180, EIWA/180

2.Temperature Class(℃): H

3.Manufacturing Scope: Ф0.10-6.00mm, AWG 1-34, SWG 6~SWG 38

4.Standard: NEMA, JIS, GB/T23312.5-2009, IEC60317-15

5.Spool Type: PT15 - PT270, PC500

6.Package of Enameled Aluminum Wire: Pallet Packing

7.Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

8.Quality Control: company internal standard is 25% higher than IEC standard

Product Parameters

Comparison of Different Product Type
Product Type	Enameled Aluminum Wire
Diameter Range	0.10mm-6.0mm
DC Resistance (20°C ）	0.083Ω/m
Conductor Density(g/cm³）	2.7
Tensile Strength Nom(N/mm²）	120
Elongation Nom (%)	22
Conductivity (MS/m)	28-32
Breakdown Voltage(>2000V)	Non-breakdown
Property	Good electrical conductivity, lightweight,cost-effective, corrosion resistance,excellent ductility
Application	Transformer, Electric Motor, Generator, Power Transmission

Heat Grade	155/180/200/220 C
Model	QA/QZ/QZY/Q(ZY/XY)
Enamel Type	PEW/UEW/EIW/AI/PIW
Spool Type	PT-10, PT-15, PT-25, PT-60, PT-90, PT-200, and PT-270
Certification	SGS,IEC,ROHS,ISO9001
Packaging	Carton+Stretch Film+Pallet

Advantages of Enameled Aluminum Wire

1. Aluminum wire costs 30-60% lower than copper wire.

2. Aluminum wire weighs only 1/3 of copper wire.

3. Aluminum has a fast heat dissipation than copper wire.

4. Aluminum wire has a good performance of Spring-back and Cut-through.

5. Enameled aluminum wire has advantages of skin adhesion, heat resistance and chemical resistance.

6. Enameled aluminum wire has advantages of insulation and corona resistance.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT15	6.5KG	12-13 tons	22.5-23 tons
	PT25	10.8KG	14-15 tons	22.5-23 tons
	PT60	23.5KG	12-13 tons	22.5-23 tons
	PT90	30-35KG	12-13 tons	22.5-23 tons
	PT200	60-65KG	13-14 tons	22.5-23 tons
	PT270	120-130KG	13-14 tons	22.5-23 tons
	PC500	60-65KG	17-18 tons	22.5-23 tons
