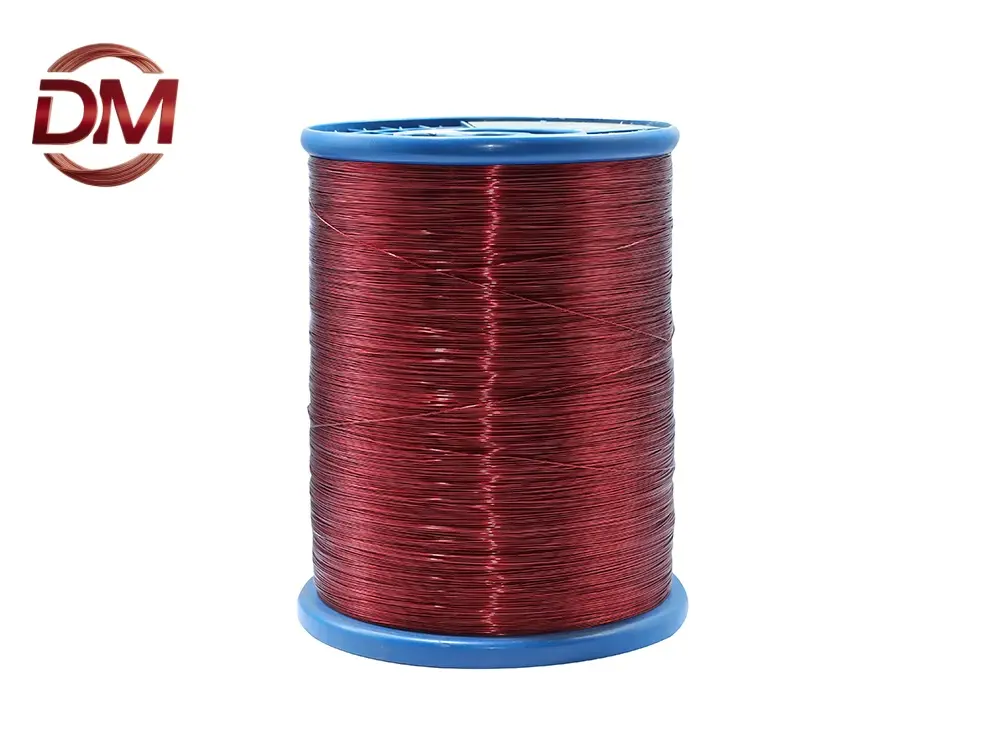

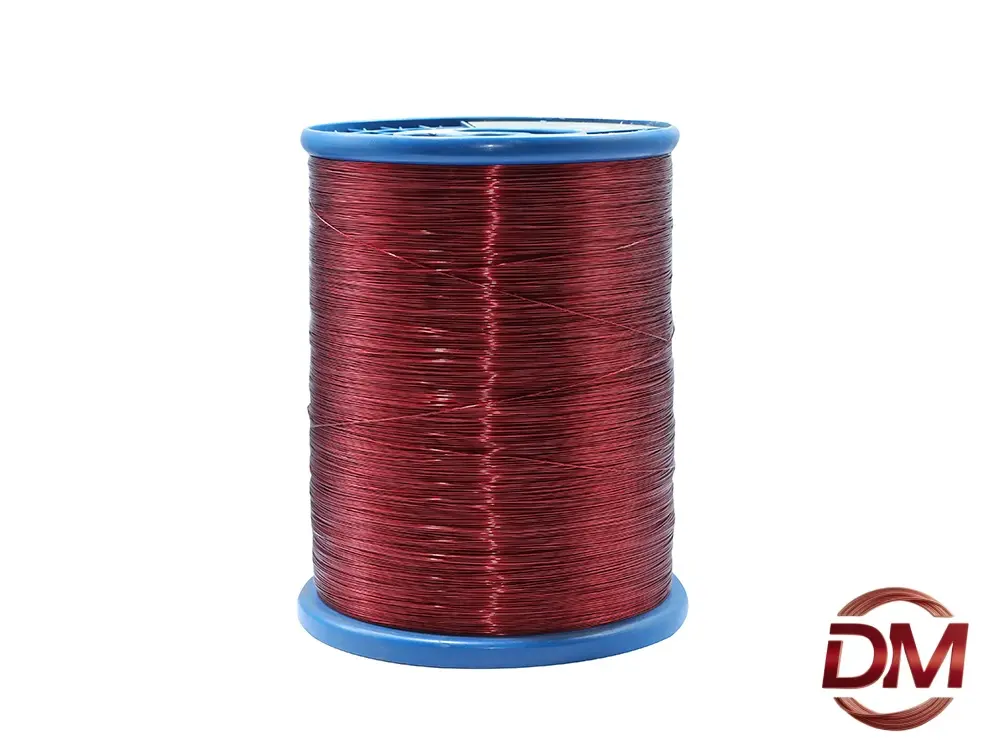

220 Class Enameled Aluminum Wire

The 220°C enameled aluminum wire, with a polyimide enamel insulation layer coated, continuous operation in a high-temperature environment of 220°C.

It features the most outstanding thermal stability, solvent resistance, high penetration resistance, radiation resistance, and refrigerant resistance.

Used in high-temperature motors, explosion-proof motors, fire-resistant transformers, compressors and other equipment, which need to maintain good insulation performance and mechanical strength under extreme temperatures.

Product Types

Q(ZY/XY)L/200, El/AIWA/200

Temperature Class(℃): C

Manufacturing Scope: Ф0.10-6.00mm, AWG 1-34, SWG 6~SWG 38

Standard: NEMA, JIS, GB/T23312.7-2009, IEC60317-15

Spool Type: PT15 - PT270, PC500

Package of Enameled Aluminum Wire: Pallet Packing

Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

Quality Control: company internal standard is 25% higher than IEC standard

Product Parameters

Comparison of Different Product Type
Product Type	Enameled Aluminum Wire
Diameter Range	0.10mm-6.0mm
DC Resistance (20°C ）	0.083Ω/m
Conductor Density(g/cm³）	2.7
Tensile Strength Nom(N/mm²）	120
Elongation Nom (%)	22
Conductivity (MS/m)	28-32
Breakdown Voltage(>2000V)	Non-breakdown
Property	Good electrical conductivity, lightweight,cost-effective, corrosion resistance,excellent ductility
Application	Transformer, Electric Motor, Generator, Power Transmission

Heat Grade	155/180/200/220 C
Model	QA/QZ/QZY/Q(ZY/XY)
Enamel Type	PEW/UEW/EIW/AI/PIW
Spool Type	PT-10, PT-15, PT-25, PT-60, PT-90, PT-200, and PT-270
Certification	SGS,IEC,ROHS,ISO9001
Packaging	Carton+Stretch Film+Pallet

Advantages of Enameled Aluminum Wire

1. The cost of aluminum wire is lower than copper wire, so it can save the transportation cost.

2. The weight of aluminum wire is 2/3 lighter than that of copper wire.

3. Aluminum wire has a faster speed of heat dissipation than that of copper wire.

4. Aluminum wire does well in the performance of Spring-back and Cut-through.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT15	6.5KG	12-13 tons	22.5-23 tons
	PT25	10.8KG	14-15 tons	22.5-23 tons
	PT60	23.5KG	12-13 tons	22.5-23 tons
	PT90	30-35KG	12-13 tons	22.5-23 tons
	PT200	60-65KG	13-14 tons	22.5-23 tons
	PT270	120-130KG	13-14 tons	22.5-23 tons
	PC500	60-65KG	17-18 tons	22.5-23 tons
