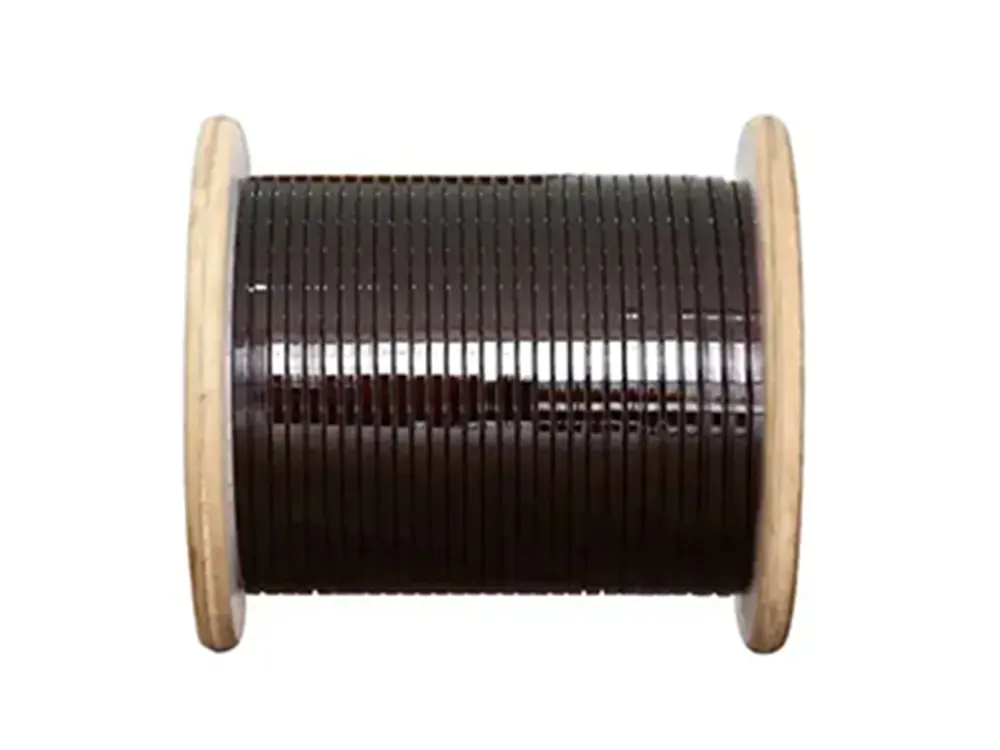

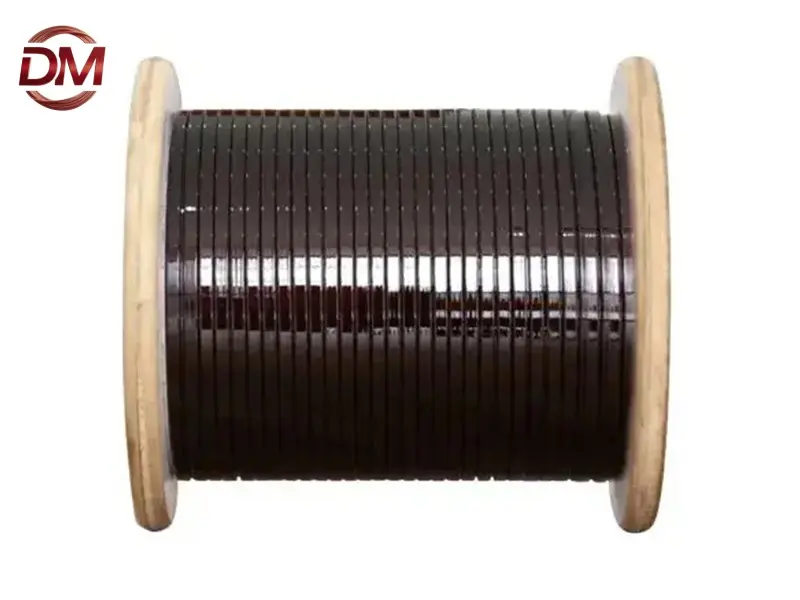

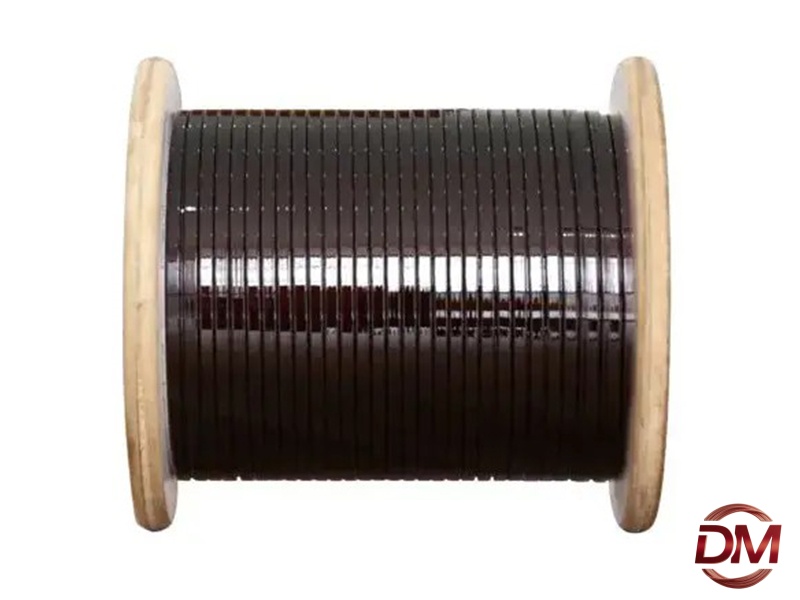

220 Class Enameled Flat Aluminum Wire

Enamelled rectangular wire is an enamelled rectangular conductor with an R Angle. It is described by the narrow edge value of the conductor, the wide edge value of the conductor, the heat resistance grade of the paint film and the thickness and type of the paint film. Enamelled flat wire is used on electronics and DC converter transformer. 220 Class Enameled Flat Aluminum Wire is usually used for power transformer, electric motors, generators and new energy vehicles.

Product Types

1.EI/AIWAR/220, Q(ZY/XY)LB/220

2.Temperature Class(℃): C

3.Conductor Thickness: a:0.90-5.6mm

4.Conductor Width: b:2.00~16.00mm

5.Recommended Conductor's Width Ratio: 1.4<b/a<8.0

6.Any customer-made specification will be available, please kindly inform us in advance.

7.Standard: GB, IEC

8.Spool Type: PC400-PC700

9.Package of Enameled Rectangular Wire: Pallet Packing

10.Certification: UL, SGS, ISO9001, ISO14001, accept third party inspection as well

11.Quality Control: company internal standard is 25% higher than IEC standard

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet (Aluminum)	PC500	60-65KG	17-18 tons	22.5-23 tons
Pallet (Copper)	PC400	80-85KG	23 tons	22.5-23 tons

Conductor Material

● This type of enameled flat aluminum wire is manufactured to the highest quality and performance standards. The wire is made of soft copper and meets the requirements of GB5584.2-85, ensuring a resistivity of less than 0.017240.mm/m at 20 degrees Celsius. Conductors have different mechanical strengths to choose from, with a non proportional elongation of Rp0.2 (>100-180) N/mmRp0.2 (>280-220) N/msup>2Rp0.2 (>220-260) N/m ² for semi hard copper conductors

● The wires are made of high-quality raw materials to ensure first-class durability and performance. The manufacturing of the wires has precision and professional knowledge to ensure that they meet the highest quality and performance standards. The wires have different mechanical strengths, making them suitable for a wide range of applications.

● 220 grade enameled flat aluminum wire is widely used in applications ranging from electrical equipment to transformers and generators. This wire has a wide range of applications and can be used in various industries such as automobiles, aerospace, and healthcare.

● This type of enameled flat aluminum wire has several advantages compared to other types of wires. Firstly, it has a low resistivity at 20 degrees Celsius, making it highly efficient in power transmission. Secondly, it is very durable and can withstand harsh environments, ensuring long-lasting performance. Finally, it has high universality and can be used in a wide range of applications

Advantages of Enameled Rectangular Wire

1.220 grade enameled flat aluminum wire is very suitable for users who require lower height, smaller size, lighter weight, and higher power density in electronic and electrical products. One of the prominent features of this product compared to circular enameled wire is its increased surface area. This unique feature ensures effective reduction of 'skin effects', thereby reducing power density.

2. With this product, you can achieve higher power density, better heat dissipation, and lower losses in high-frequency applications. This type of wire has excellent moisture resistance, chemical resistance, and wear resistance, making it widely used and suitable for various applications.

3. Our products are available in multiple sizes and are the ideal choice for all electronic and electrical products, regardless of their size or complexity

4. We are proud of the quality of our products. With excellent quality and reliability, you can believe that our products will meet and exceed your expectations

5.220 grade enameled flat aluminum wire is a disruptive product with outstanding characteristics and functionality. It is widely used and durable, making it an ideal choice for various applications. If you are looking for a high-performance product that combines quality and efficiency, then take a look at our 220 grade enamel flat aluminum wire. Contact us now to experience these benefits
