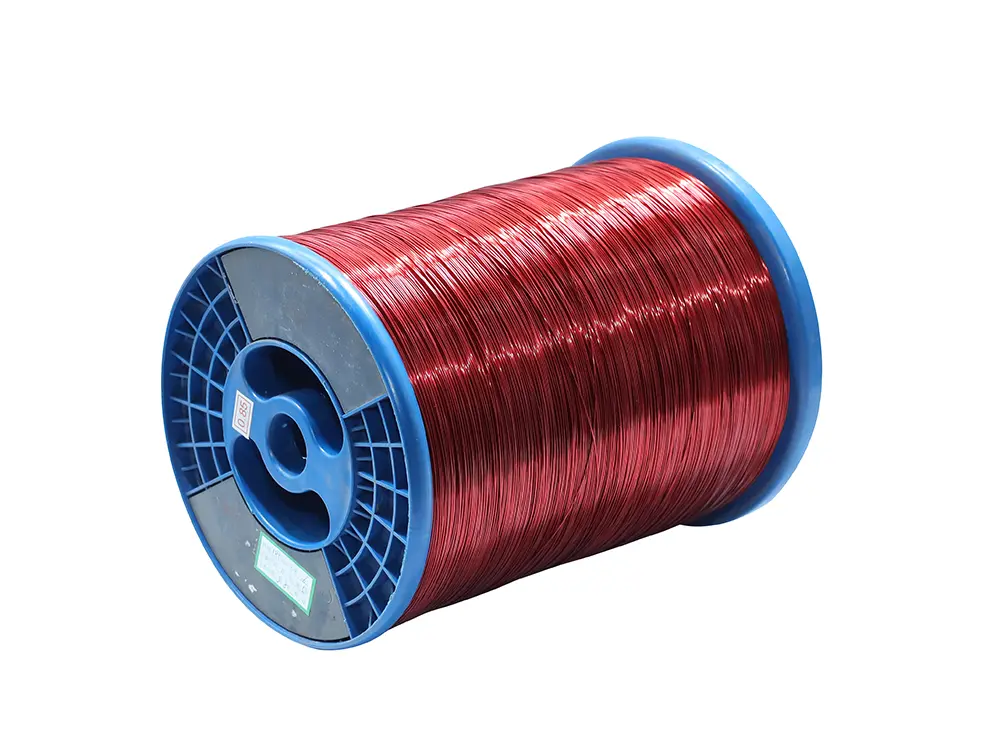

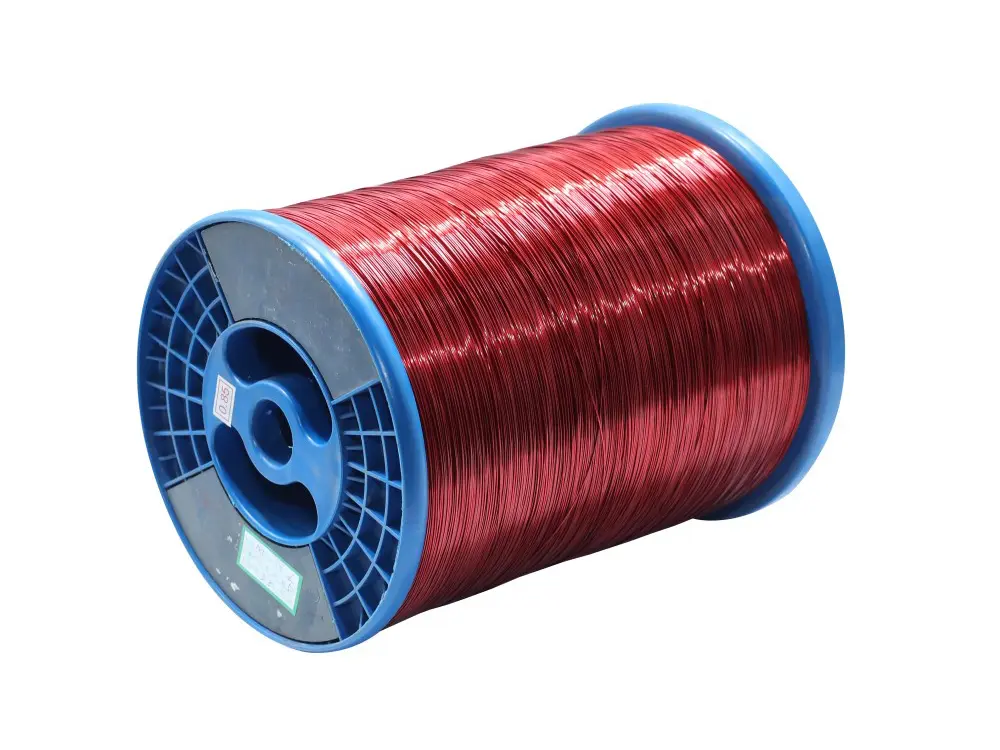

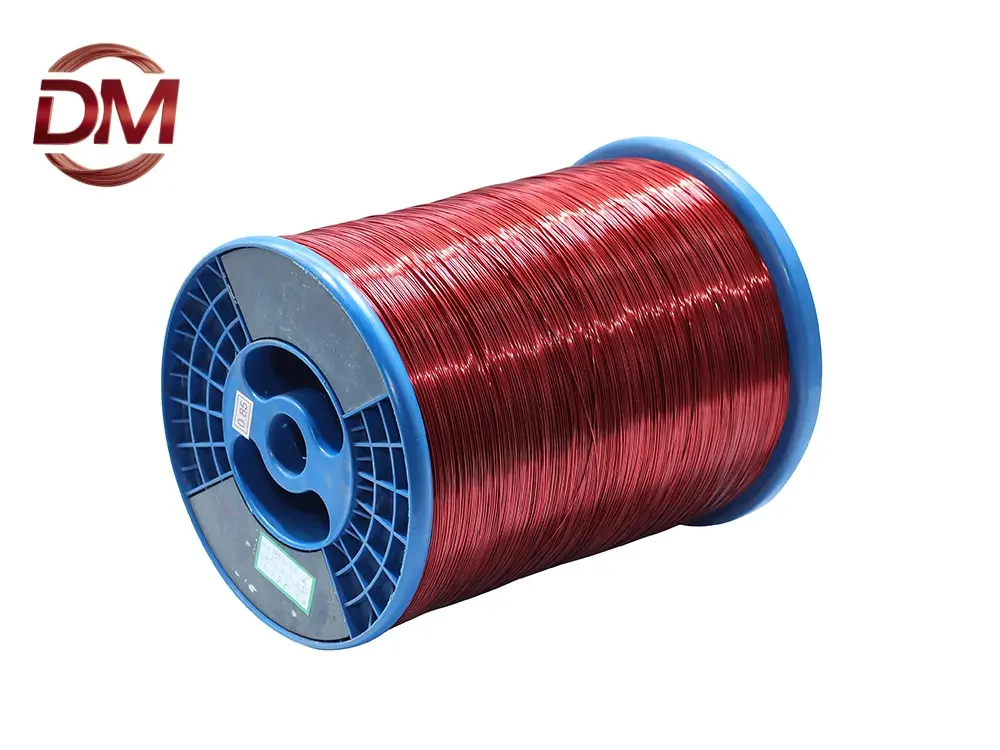

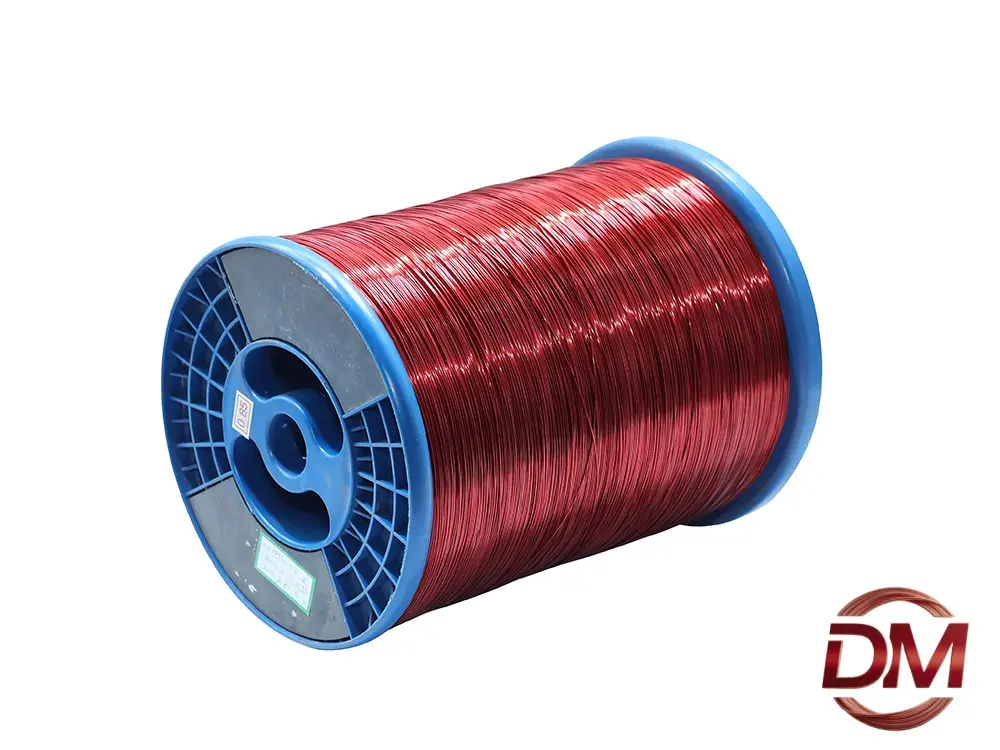

Enameled Aluminum Wire

The material of enameled aluminum wire is high-purity electrolytic aluminum (purity ≥ 99.7%), and some are added with trace alloying elements (such as iron and silicon) to improve mechanical strength (preventing breakage during wire drawing or winding).

As a current carrier, it needs to have good electrical conductivity (conductivity is about 60% of copper, but the cost is lower), and must have a certain flexibility after annealing (facilitating coil winding).

The core process adopts an integrated production line integrating "integrated wire drawing system - continuous annealing process - repeated painting and baking - composite cooling system - tension control system". This production line shortens the interval between processes, effectively reduces production time, and greatly improves efficiency.

Product Types

● Polyester Enameled aluminum round wire(PEW);

● Polyurethane Enameled aluminum round wire(UEW);

● Polyesterimide enameled aluminum round wire(EIW);

● Polyesterimide over-coated with polyamide-imide enameled aluminum round wire(EIW/AIW);

● Polyamide-imide enameled aluminum round wire(AIW)

Specification

Comparison of Different Product Type
Product Type	Enameled Aluminum Wire
Diameter Range	0.10mm-6.0mm
DC Resistance (20°C ）	0.083Ω/m
Conductor Density(g/cm³）	2.7
Tensile Strength Nom(N/mm²）	120
Elongation Nom (%)	22
Conductivity (MS/m)	28-32
Breakdown Voltage(>2000V)	Non-breakdown
Property	Good electrical conductivity, lightweight,cost-effective, corrosion resistance,excellent ductility
Application	Transformer, Electric Motor, Generator, Power Transmission

Heat Grade	155/180/200/220 C
Model	QA/QZ/QZY/Q(ZY/XY)
Enamel Type	PEW/UEW/EIW/AI/PIW
Spool Type	PT-10, PT-15, PT-25, PT-60, PT-90, PT-200, and PT-270
Certification	SGS,IEC,ROHS,ISO9001
Packaging	Carton+Stretch Film+Pallet

Advantages of Enameled Aluminum Wire

1. The cost of aluminum wire is 30-60% lower than copper wire, which saves the cost of production .

2. The weight of aluminum wire is only 1/3 of copper wire, which saves the transportation cost.

3. Aluminum has a faster speed of heat dissipation than copper wire in the production.

4. For the performance of Spring-back and Cut-through, aluminum wire is better than copper wire.

Application of Enameled Aluminum Wire

1. Microwave transformers;

2. Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission

3. Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;

4. Enamelled wire used in small-motor rotor winding .etc.

5. Magnet wires used in monitor deflection coil;

6. Magnet wires used in degaussing coil;

7. Other special magnet wire.

Spool & Container Weight

Packing	Spool type	Weight/Spool	Maximum load quantity
Packing	Spool type	Weight/Spool	20GP	40GP/ 40NOR
Pallet	PT15	6.5KG	12-13 tons	22.5-23 tons
	PT25	10.8KG	14-15 tons	22.5-23 tons
	PT60	23.5KG	12-13 tons	22.5-23 tons
	PT90	30-35KG	12-13 tons	22.5-23 tons
	PT200	60-65KG	13-14 tons	22.5-23 tons
	PT270	120-130KG	13-14 tons	22.5-23 tons
	PC500	60-65KG	17-18 tons	22.5-23 tons
